Plate Tamper 1000 lb

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKUTAM-300
4 Hours$125
Daily$150
Weekend * $180
Weekly$600
Monthly$1,800

* Weekend = Sat - Mon 8AM

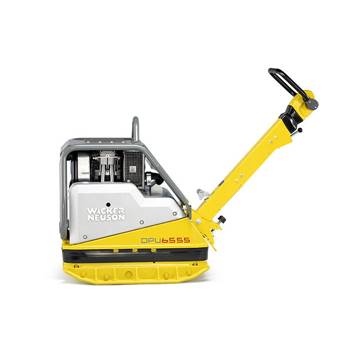

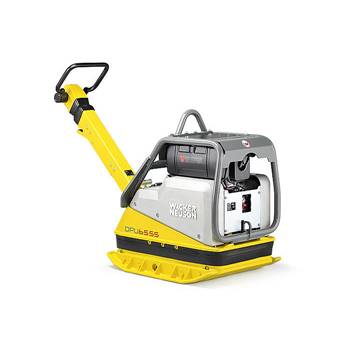

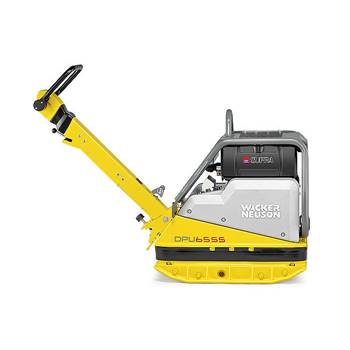

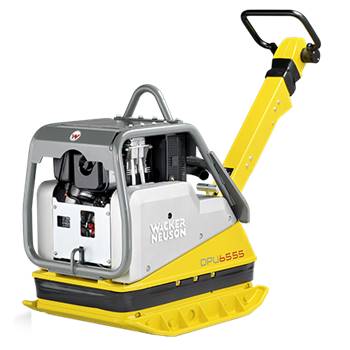

Wacker DPU6055 / DPU6555

A reversible plate for the toughest compaction jobs.
The DPU 6055 offers the best compaction of various types of soil. It shows its true strength when working on semi-cohesive soils in particular. This reversible plate provides optimum performance along with a variable forward and reverse speed of up to 92 feet per minute (28 meters per minute). Plus, the dual shaft exciter technology provides the maximum possible compaction depth in most types of soil.

Specifications

DPU 6555Heh
Operating weight  lb1091
Centrifugal force  lbf14612
Base plate size (W?x?L) in21.7 x 35
Base plate thickness  in0.5
Height (ground clearance) in33.6
Operating width (with extension plates) in28
Frequency  Hz69
Hand-arm vibrations  ft/s²4.3
Advance travel max. (dependent on soil and environmental influences) ft/min91.8
Surface capacity max. (dependent on soil and environmental influences) ft²/h12917
Transport height  in59.9
Transport length  in41.7
Transport width  in30.7
Shipping weight  lb1105
Engine / Motor type Air-cooled, single-cylinder, four-cycle diesel engine
Engine / Motor manufacturer Hatz
Engine / Motor 1D81S
Displacement  in³40.7
Engine performance (rated power) (IFN DIN ISO 3046) kW9.6
at rpm  rpm2800
Operating performance (DIN ISO 3046) kW6.8
at rpm  rpm3010
Fuel consumption  US gal/h0.5
Tank capacity (fuel) Liters5.9
Power transmission From the drive motor via centrifugal clutch and V-belt directly to the exciter.
Fuel type Diesel
