Skid Steer JCB 135

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

4 Hours$166
Weekend * $260
Rental includes bucket or pallet fork attachment. $20 per day each extra bucket. 20% off trailer rental!
Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit.

* Weekend = Fri - Mon 8AM

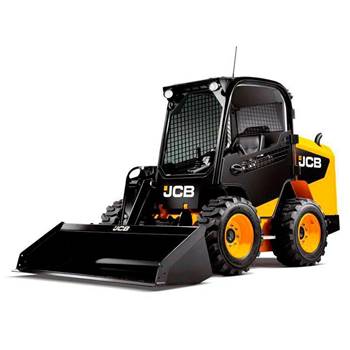

JCB 135

The small platform JCB radial lift 135 skid steer is a side door entry unit with a 1,350lb (612kg) rated operating capacity. The industry's safest skid steer.


Length w/Bucket11 ft. 5 in. (3.49 m)
Height6 ft. 6 in. (1.98 m)
Width4 ft. 11 in. (1.52 m)
Bucket Width5 ft. (1.52 m)
Bucket Capacity0.47 cu. yd. (0.36 m²)
Weight6,067 lbs. (2,752 kg)
Wheelbase3 ft. 6 in. (1.07 m)
Ground Clearance8.3 in. (210 mm)
Turning Radius
Bucket Corner6 ft. 10 in. (2.09 m)
Quick Hitch3 ft. 7 in. (1.1 m)
Rear Chassis5 ft. 5 in. (1.65 m)
Engine & Drive Train
Engine Model404D-22
Tank Capacity50 liters
Gross Horsepower47.9 hp (35.7 kW)
Torque105 ft. lbs. (143 Nm)
Travel Speed - Forward7.5 mph (12 km/h)
Opt Pump Flow18.5 gpm (70 lpm)
System Pressure3,335 psi (230 bar)
Rated Operating Capacity1,350 lbs. (612.3 kg)
Tipping Load2,989 lbs. (1,356 kg)
Height to Bucket Pin9 ft. 10 in. (3 m)
Reach @ Max. Height3 ft. (0.91 m)
Angle Departure25°
Dump Height7 ft. 5 in. (2.26 m)
Maximum Reach3 ft. 3 in. (1 m)
Dig Depth4 in. (10 mm)
Rollback @ Ground30°
Dump Angle42°
Bucket Breakout Force4,012 lbs. (1,820 kg)
