Skid Steer Mini Ditch Witch rentals | Standard Rentals Spruce Grove AB

SK800

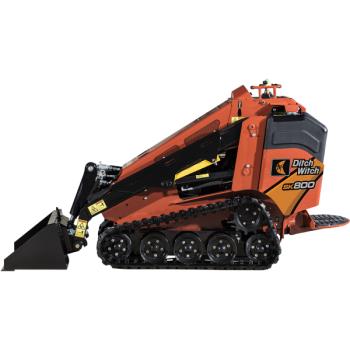

Ditch Witch SK800

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU	SKI-110
4 Hours	$160
Daily	$200
Weekend *	$260
Weekly	$800
Monthly	$2,400
Attachments Extra
Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit.

* Weekend = Fri - Mon 8AM

Videos

Ditch Witch SK800, Mini Skid Steer

Ditch Witch SK800

The SK755 is a platform, rubber track mini skid steer unit designed for light-to medium-duty construction work.
The SK755 has a quick attach mount plate which makes it easy for an operator to connect different attachments.

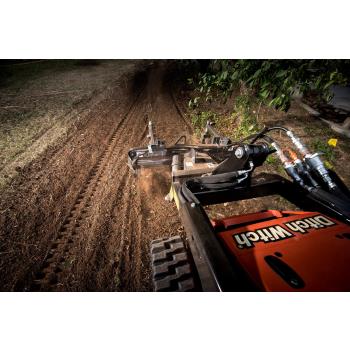

Attachments: Trencher (104-0210), Auger drive. NO Snow Bucket or Sweeper!

Specifications

Operating height, max std. bucket	105 in / 2.67 m
Hinge pin height, max	83 in / 2.10 m
Overall height of machine	57 in / 1.45 m
Overall length of machine, std. bucket	105 in / 2.67 m
Overall length of loader, no attachment	86 in / 2.19 m
Wheelbase/track length	43 in / 1.09 m
Machine width
Max, w/9-in (230-mm) tracks	42 in / 107 cm
Min, w/7-in (180-mm) tracks	36 in / 91 cm
Ground clearance, min
Center	8.9 in / 226 mm
Side	3.7 in / 94 mm
Ground drive speed
Forward/reverse	4.3 mph / 6.9 km/h
Ground pressure
7-in (180-mm) tracks	5.2 psi / 0.36 bar
9-in (230-mm) tracks	4.3 psi / 0.29 bar
Angle of departure	27°
Tipping capacity	2,605 lb / 1182 kg
Rated operating capacity (35% of tipping capacity)	911 lb / 413 kg
Machine weight (no attachment, fluids full)	2,920 lb / 1324 kg
Auxiliary circuit, double gear pump
Flow rate	12 gpm / 45.4 l/min
Pressure	3,000 psi / 207 bar
Power
Engine	Kubota® D1105
Fuel	Diesel
Number of cylinders	3
Displacement	68.5 in3 / 1.12 L
Bore	3.07 in / 78 mm
Stroke	3.09 in / 78.4 mm
Gross power rating (SAE J1995)	24.8 hp / 18.5 kW
Rated speed	3,000 rpm
Emissions compliance	EPA Tier 4
Fluyid Capacities
Hydraulic reservoir capacity	9.2 gal / 35 L
Engine oil, w/filter	5 qt / 4.7 L
Fuel tank capacity	10.5 gal / 40 L
Noise Level
Operator ear sound pressure	89 dBA
Sound power	100 dBA
Battery
SAE reserve capacity rating	110 min
SAE cold crank @ 0ºF (-18ºC)	800 amps
Electrical system	12V
